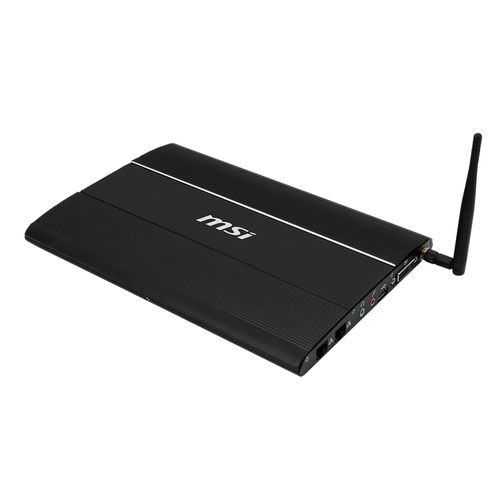

Box PC MS-9A65

Intel® Celeron J1900Intel Bay TrailBay Trail-D

Ultra-Slim & Featherweight Fanless Box PC with Intel® BayTrail Platform for Low-Power & Digital Signage Player DC-IN 19V System Processor Frequency 2GHz~2.42GHz L2 Cache 2MB CPU Type BGA BIOS AMI Graphic Controller Intel® HD Graphics Graphic Memory Depends on CPU Multiple Display 2 independent displays Ethernet Controller 2 x Intel® I210-AT GbE Audio Controller Realtek® ALC887 HD Audio Codec H/W Monitor Watchdog Timer 256-level Watchdog Timer Smart Fan Yes Expansion Slot 1 x Half-size I/O Interface Audio 1 x Mic-in 1 x Line-out Serial 1 x COM port Antenna 1 (opening reserved for 2nd antenna) Power Supply DC Input DC-in 19V Environment Operating Temperature 0 ~ 40°C (HDD) -10 ~ 60°C (SSD) Operating Humidity 10 ~ 90%, non-condensing Storage Humidity 10 ~ 90%, non-condensing Storage Temperature -20 ~ 80°C Vibration Operating, 0.25 Grms, 5-300Hz, 3axes (w/ HDD) Shock Operating, 3 G, half sine 11 ms duration (w/ HDD) Physical Characteristics Dimensions 180 x 255 x 19mm Weight 1.30 kg Certification EMC FCC, CE, RCM, VCCI, BSMI Safety BSMI, CB, Energy Star
