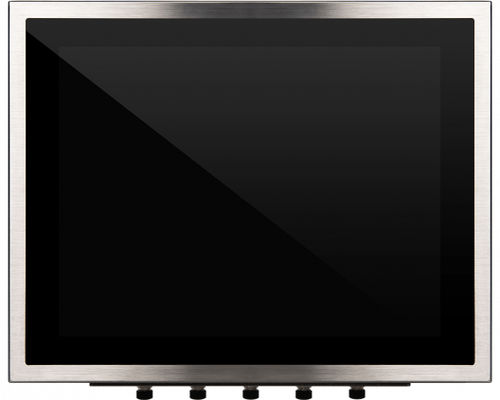

LCD panel PC MS9Z06 series

PCAP capacitive touch screenmultitouch screen5-wire resistive touch screen

Display Brightness (cd/m2) 300 300 Contrast Ratio 2500:1 2500:1 Support Colors 16.7 M 16.7 M Pixel Pitch (H/Vmm) 0.297 x 0.297 0.297 x 0.297 Viewing Angle H: 176 degree V: 176 degree H: 176 degree V: 176 degree System Processor Frequency 2.0 GHz, up to 2.42 GHz 2.40 GHz L2 Cache 2MB 3MB Chipset SoC SoC Ethernet Controller 1 x Intel® I210-AT GbE LAN 1 x Intel® I210-AT GbE LAN Expansion Slot Mini-PCIe 1 x Full-size 2 x Full-size (Mini-PCIe1 Slot w/ NANO SIM-Holder) (Mini-PCIe2 Slot w/ mSATA) Storage SATA 1 x 2.5" HDD/SSD (Default 128GB SSD) 1 x 2.5" HDD/SSD (Default 128GB SSD) mSATA -- 1 (Shared with Mini-PCIe2) I/O Interface RJ-45 1 1 USB 2 x USB 2.0 2 x USB 2.0 Serial 1 x COM COM1: RS-232, w/o power 1 x COM COM1: RS-232, w/o power Power Supply DC Input DC-in 12V DC-in 12V Environment Operating Temperature 0° ~ 50°C 0° ~ 50°C Operating Humidity 10% ~ 90% non-condensing 10% ~ 90% non-condensing Storage Humidity 10% ~ 90% non-condensing 10% ~ 90% non-condensing Storage Temperature -20° ~ 60°C -20° ~ 60°C Physical Characteristics Dimensions 388.6mm x 303mm x 90mm 388.6mm x 303mm x 90mm Weight 8.5 Kg 8.5 Kg Certification EMC FCC, CE Class B FCC, CE Class B
