COM Express single-board computer MS-98H7

8th Generation Intel® Core™Intel® Core™ i3-8100Intel® Core™ i5-8400H

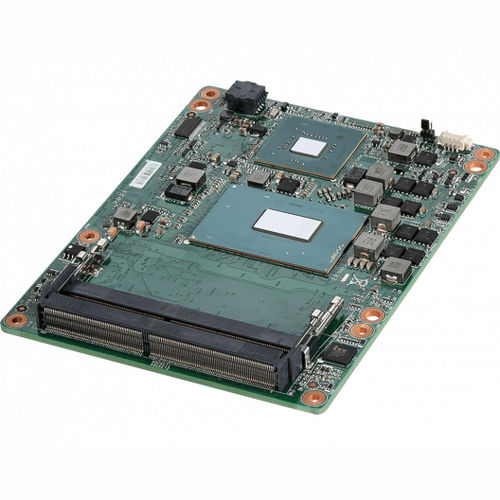

The MSI MS-98H7 is a COM Express Single Board Computer (SBC) featuring the 8th Gen Intel® Coffee Lake-H Series with CM246/QM370 chipset. It supports up to 32GB of DDR4 2666 MHz memory through two SODIMM slots, accommodating ECC and non-ECC configurations. The board supports triple independent displays via VGA, LVDS, and three Digital Display Interfaces (DDI). Networking capabilities include GbE LAN. Expansion options include one PCIe x16 (Gen 3) slot and eight PCIe x1 (Gen 3) slots. For storage, it provides four SATA 3.0 ports supporting RAID 0/1/5/10 configurations. Connectivity options include four USB 3.2 Gen 1 ports, eight USB 2.0 ports, and two UART ports. The board features onboard TPM 2.0 for security and supports Intel® Active Management Technology (iAMT) version 12.x.
