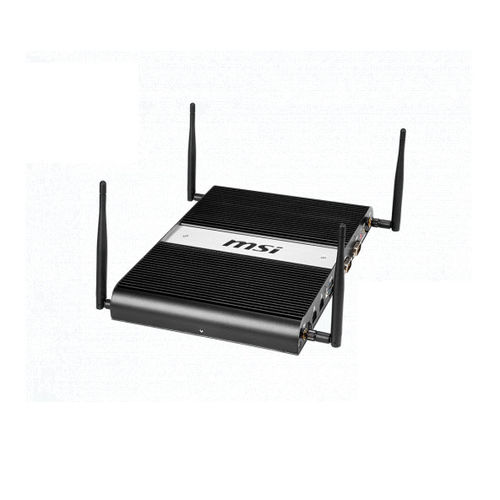

Box PC MS-9B05

8th Generation Intel® Core™Intel® Whiskey lake-U seriesHDMI

MS-9B05 is a slim and fanless Box PC powered by the Intel® 8th Gen Whiskey Lake-U Series processor. It supports up to 32GB of DDR4 2400 MHz (optional) SODIMM RAM and features triple independent displays with HDMI™ 2.0 and options for HDMI™ (DVI-D), and HDMI™ (DP). It includes 2 GbE LAN ports, expansion slots for 1 M.2 E Key, 1 M.2 M Key, 1 Full/Half-size Mini-PCIe with SIM Holder, and 1 Full/Half-size Mini-PCIe with mSATA. Storage options include mSATA, M.2 M key, and SATA 3.0 for 2.5” SSD/HDD (7mm). Connectivity features are 2 USB 3.2 Gen 2 ports (optional), 4 USB 2.0 ports, 2 COM ports (2 RS485), and Audio. Optional onboard TPM 2.0 enhances security. It supports ESD protection (Contact 8KV/ Air 15KV), easy access with only 2 screws to fix/remove the bottom cover quickly, and quick assembly for memory, Mini-PCIe, M.2, and HDD/SSD on the bottom side. It features 4 openings reserved for WiFi/BT/LTE antennas, complies with IEC 61373 standards, operates on wide voltage DC-IN 9~36V, and boasts an ultra-slim, fanless design with a thinness of 27mm.
