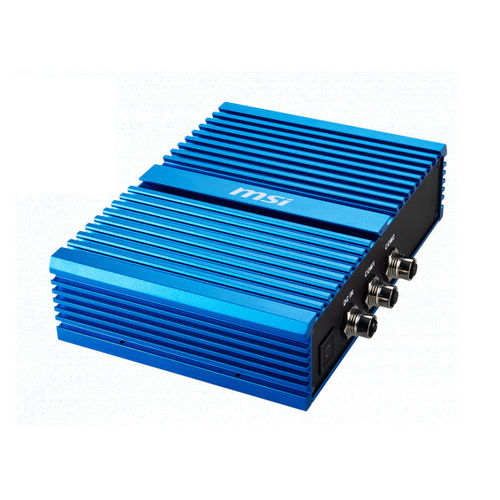

Box PC MS-9A84

Intel® Core™ i3-7100UIntel® Kaby Lake ProcessorHDMI

M12 Waterproof Connector Box PC with Intel® Kaby Laby-U Series Processor for Ultra Low-Power & Fanless Solution M12 type waterproof I/O connector design Wide Voltage DC-IN 12~24V Processor Frequency 2.4GHz L2 Cache 3MB CPU Type BGA Chipset Integrated in Process BIOS AMI Graphic Controller Intel® HD Graphics Graphic Memory Depends on CPU Multiple Display 1 independent display Ethernet Controller 1 x Intel® I210-AT GbE LAN 1 x Intel® I219-LM GbE LAN PHY Audio Controller Realtek® ALC887-VD2-CG HD Audio Codec H/W Monitor Watchdog Timer 256-level Watchdog Timer Power Supply DC Input DC-in 12V~24V Environment Operating Temperature -10~45°C (HDD) -10~60°C (w/ WT Memory, SSD/mSATA) Operating Humidity 10 ~ 90%, non-condensing Storage Humidity 10 ~ 90%, non-condensing Storage Temperature -20 ~ 80°C Vibration Operating: 0.5 Grms, 5-500Hz, 3axes (w/ HDD) Shock Operating: 3 G, half sine 11 ms duration (w/ HDD) Form Factor Dimensions 215 x 155 x 55 mm Weight 1.66 kg Certification EMC FCC Class A, CE, RCM, VCCI, BSMI Safety BSMI
