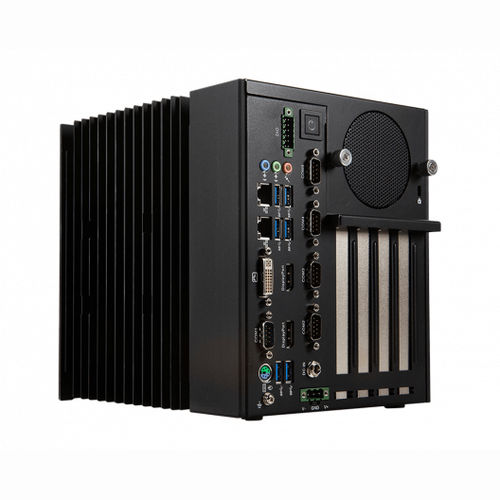

Box PC MS-9A76 series

wall-mountedIntel® Celeron®Intel® Pentium

The MSI MS-9A76 is a rugged, fanless edge AI Box PC designed for scalable and versatile industrial applications. It features Intel® 7th/6th Gen Kaby Lake-S/Skylake-S Series processors with options for C236 or Q170 chipsets. Memory support includes two DDR4 SODIMM slots capable of ECC/non-ECC RAM up to 32GB at speeds of 2400/2133 MHz. The system supports triple independent displays with DVI-I and two DisplayPort connectors. Networking capabilities include dual GbE LAN ports with RJ-45 connectors. The MS-9A76 offers multiple SKU configurations: - SKU1: Includes 1 PCIe x16 (Gen 3), 1 PCI, and 1 full-size Mini-PCIe slot with mSATA support. - SKU2: Provides 1 PCIe x16 (Gen 3) and 3 PCI slots. - SKU3: Features 2 PCIe x8 (Gen 3) and 2 PCI slots. For storage, it supports mSATA and two SATA 3.0 ports for 2.5" SSD/HDD drives (7mm), with RAID 0/1 capability. Connectivity options comprise 6 USB 3.2 Gen 1 ports, 5 USB 2.0 ports (2 optional), 5 COM ports (including 2 RS485), audio ports, GPIO, and PS/2 connectors. It includes onboard TPM 2.0 for security, 8-bit GPIO with 5~35V support and 1.5KV isolation, and a fanless design for quiet operation. Additional features include easy access to CPU, HDD, memory, CFast, and expansion slots, along with anti-vibration and shockproof design compliant with IEC 60068-2 standards. The device supports a wide voltage DC input range of 9~36V, making it suitable for rugged industrial environments.
