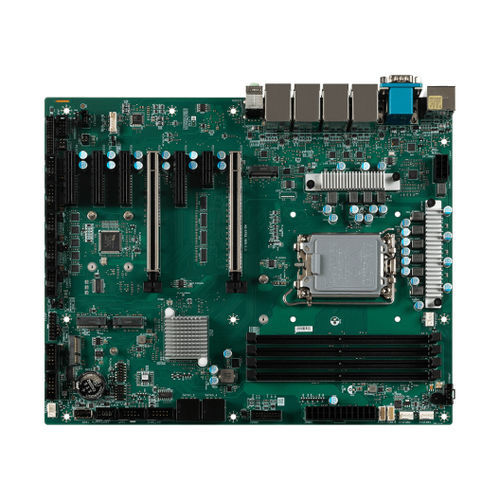

ATX motherboard MS-CF05

Intel® Celeron®Intel® Core i3Intel® Core i5

MS-CF05 ATX motherboard supports Intel® 14th/13th/12th Gen Raptor Lake-S Refresh/Alder Lake-S Series, with R680E/Q670E chipsets. supports up to 128GB of DDR5 4400 MHz ECC/non-ECC UDIMM memory across four slots. It features triple independent displays via VGA, DP, and HDMI, and includes four 2.5GbE LAN ports with RJ-45 connectors. Expansion options include one PCIe x16 (Gen 5) slot, two PCIe x8 (Gen 5) slots, one PCIe x4 (Gen 4) slot, three PCIe x4 (Gen 3) slots, and two M.2 M key slots, with additional M.2 E and B key slots. Storage capabilities encompass four SATA 3.0 ports supporting RAID 0/1/5/10. Connectivity options include eight USB 3.2 Gen 2, two USB 3.2 Gen 1, three USB 2.0, and six COM ports. Additional features include GPIO, PS/2, audio, three system fans, onboard TPM 2.0, SMBus, I2C, PMBus, iAMT 16.x, chassis intrusion detection, and ATX power support.
