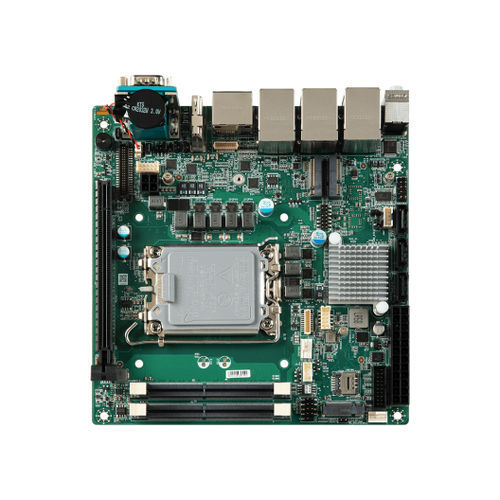

Mini-ITX motherboard MS-CF02 series

Intel® Celeron®Intel® Core i3Intel® Core i5

The MSI MS-CF02 is a Mini-ITX industrial motherboard designed for high-performance solutions, supporting 14th, 13th, and 12th Gen Intel® Raptor Lake-S Refresh and Alder Lake-S processors, including Core™ i9/i7/i5/i3, Pentium®, and Celeron® with R680E/Q670E/H610E chipsets. It features two DDR4 3200 MT/s SODIMM slots, supporting up to 64GB of ECC or non-ECC memory. The motherboard supports quadruple independent displays through two DisplayPort, HDMI, and LVDS/eDP. Networking capabilities include three or two 2.5GbE LAN ports with RJ-45. Expansion options consist of a PCIe x16 (Gen 4) slot, an M.2 E key (with CNVi), and an M.2 B key (with SIM holder), as well as an M.2 M key and three SATA 3.0 ports for storage with RAID 0/1/5 support. Connectivity features include six USB 3.2 Gen 2, two USB 3.2 Gen 1, and two USB 2.0 ports, four COM ports (RS-485), GPIO, audio, and a system fan header. The board also includes onboard TPM 2.0, supports SMBus and Intel® AMT 16.x for manageability, and operates with an ATX power supply.
