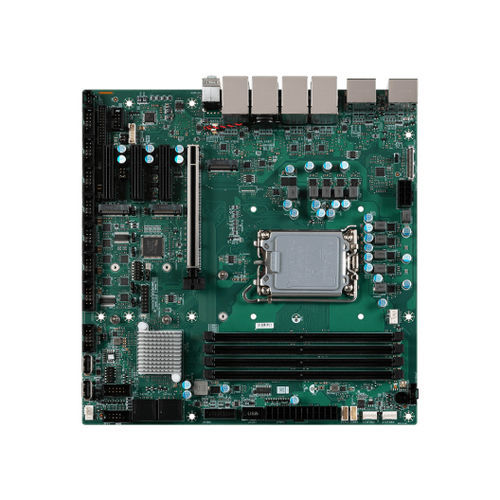

Micro-ATX motherboard MS-CF09 series

Intel® Celeron®Intel® Core i3Intel® Core i5

The MS-CF09 is a Micro-ATX motherboard that supports 14th/13th/12th Gen Intel Raptor Lake-S Refresh/Alder Lake-S processors, offering a high-performance solution. It has 4 DDR5 4400 MT/s ECC/non-ECC UDIMM slots up to 128GB, quadruple independent display outputs (2DP, 2HDMI, eDP), 4 2.5GbE LAN ports, 1 PCIe x16 (Gen 5) slot, 2 PCIe x4 (Gen 4) slots, and 1 PCIe x4 (Gen 3) slot. Storage options include 3 M.2 M key slots and 4 SATA 3.0 ports with RAID 0/1/5/10 support. It also has 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 4 USB 2.0 ports, 6 COM (RS-485) ports, GPIO, PS/2, and audio connectors. The board features onboard TPM 2.0, SMBus, I2C, PMBus, iAMT 16.x, and chassis intrusion support. It uses an ATX power supply.
