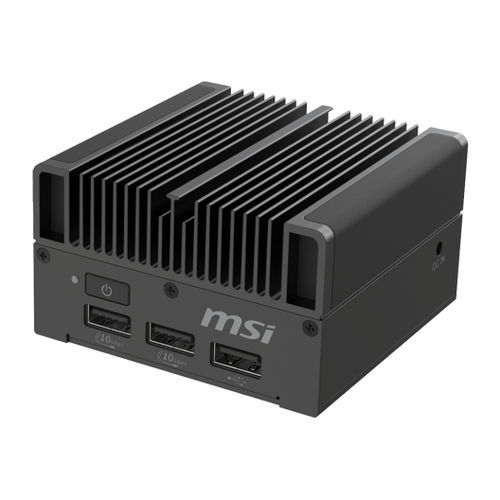

Box PC MS-C918S

VESA mountingIntel® Alder Lake-NIntel® Processor N100

Palm-Size Box PC with Intel® Alder Lake-N N100 Processor for Ultra Low-Power Fanless Solution fTPM 2.0 Palm-Sized 80 x 78 x 48 mm for easy handling and easily concealed behind your monitor SD Slot for external sotrage (Max. 2TB) System Processor Frequency 0.8 GHz~3.4 GHz L2 Cache 6MB CPU Type BGA Chipset Integrated in SoC Process BIOS AMI Graphic Controller Intel® UHD Graphics Graphic Memory Depends on CPU Multiple Display 2 independent displays Ethernet Controller 1 x Realtek® RTL8111H-CG Audio Controller -- H/W Monitor Watchdog Timer 256-level Watchdog Timer Smart Fan -- TPM Controller -- I/O Interface PoE -- Audio -- Parallel -- Serial -- GPIO -- Antenna 2 internal reserved antennas Expansion Slot PCIe x16 -- PCIe x8 -- PCIe x4 -- PCIe x1 -- PCI -- M.2 -- Mini-PCIe -- Storage SATA -- CFast -- mSATA -- CompactFlash -- Power Supply DC Input DC-in 12V AC Input -- Environment IP Rating -- Operating Temperature 0 ~ 55°C Note: Thermal w/ Airflow:0.7m/s Operating Humidity 10 ~ 90%, non-condensing Storage Humidity 10 ~ 90%, non-condensing Storage Temperature 0 ~ 60°C Vibration Operating: 0.25 Grms, 5-300Hz, 3axes Shock Operating: 3 G, half sine 11 ms duration Physical Characteristics Dimensions 80 x 78 x 48 mm Weight 0.35 kg Certification EMC FCC Class B, CE, RCM, BSMI, VCCI, UKCA, IC Safety BSMI
