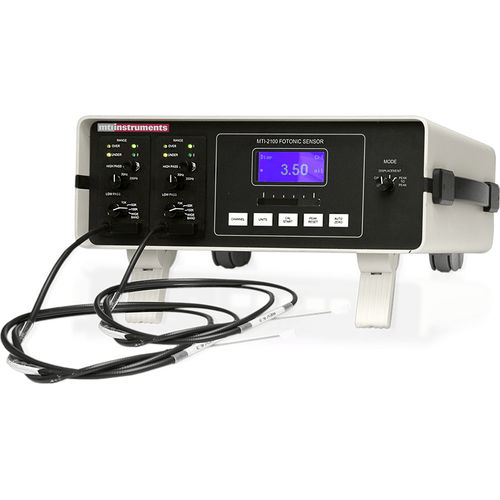

Magnetic vibration sensor MTI-2100

electronicdynamicultrasonic

Fast speed measurement sensor for ultrasonic horn vibration measurement The MTI-2100 features advanced fiber-optic non-contact sensor using reflectance electronic technologies for precise measurements of displacement, active vibration control, position, and distance for dynamic measurement in cryogenic, vacuum | high pressure, or in high magnetic field and harsh environment. It sets new performance standards with resolution up to 0.01 µin. (2.5 Angstroms) and frequency response from direct-coupled (dc) up to 500 kHz. Undoubtedly an essential measurement tool for process automation, quality control and tool automation control. Features Digital display in engineering units Dual-channel capability permits simultaneous measurements of amplitude and phase. Selectable metric or English units. Reflective compensated units available to automatically adjust to target reflectivity changes. Digital display readout in engineering units eliminates the need to convert volts to displacement. Out-of-range indicator notifies the user if the target moves out of the linear range. Interchangeable probe modules allow the user to select from seven standard fiber-optic probe designs, providing 14 different standard measurement ranges and resolutions. High-resolution module resolves to 0.1 µin. standard or 0.01 µin. (2.5A°) optional. With external filtering, 0.004-µin. (0.1nm) resolution is possible. Standard 0-to-10 V dc analog real-time output is compatible with most signal conditioning equipment. RS-232 output for computer interfacing.
