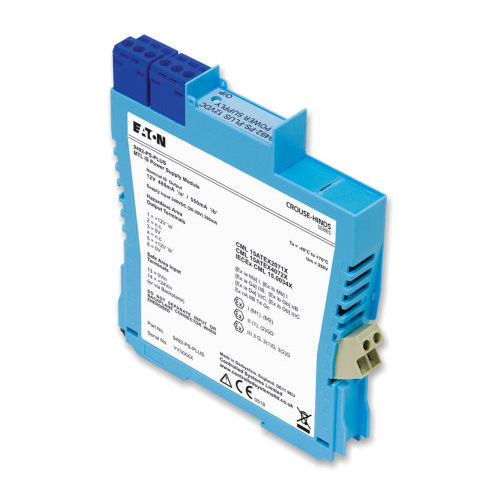

DC/DC power supply 949 PS series
adjustableDIN railfor hazardous areas

DC/DC power supply - 949 PS series - MTL INSTRUMENT - adjustable / DIN rail / for hazardous areas
DC/DC power supply - 949 PS series - MTL INSTRUMENT - adjustable / DIN rail / for hazardous areas
Add to favorites
Compare this product


Characteristics

Type
DC/DC
Output
adjustable
Mounting
DIN rail
Other characteristics
for hazardous areas
Input voltage

24 V

Max.: 30 V

Min.: 20 V

Output voltage

Max.: 17.7 V

Min.: 4.8 V

Current

350 A

Description

The 949x-PS range of MTL intrinsically safe (IS) isolated power supplies are ideal for providing power to instrumentation in hazardous process areas. They offer a wide range of different IS output voltages, ranging from 4.8V - 17.7V, offering flexibility of options to best suit a variety of applications. The 9492-PS-PLUS is the preferred method for supplying the 946x-ET range of MTL IS Ethernet devices to provide direct power or IS Power over Ethernet (PoExTM), a method which allows a single cable to provide both the data connection and electrical power to devices, in turn, reducing installation costs. Wide range of output voltages 4.8V - 17.7V Wide operating temperature range of -40 ̊C to +70 ̊C for 9492-PS-PLUS and 9493-PS-xxx Zone 2 mountable DIN-rail or backplane mounting ATEX / IECEx certified Additionally, the 9491-PS is FM and FMC approved for installation in Class 1 Division 2 hazardous locations with the Ex ia output certified for connection into Class 1 Division 1 Groups C, D hazardous locations. The 9493-PS-xxx provides versions for connections into both Gas Group IIB and Gas Group IIC hazardous areas
