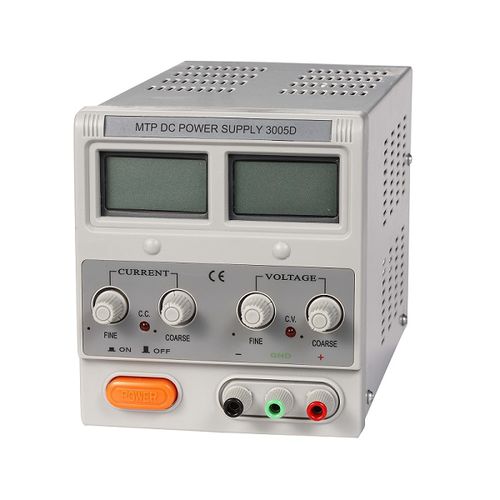

AC/DC power supply MTP 3005Dregulatedbenchtop
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- regulated
- Other characteristics
- benchtop
- Input voltage
Min.: 104 V
Max.: 253 V
- Output voltage
Min.: 0 V
Max.: 30 V
- Current
Min.: 0 A
Max.: 5 A
Description
Regulated output voltage: 0-30V
Regulated output current: 0-5A
Input voltage: 104 ~ 127V AC (60Hz), or 207 ~ 253V AC (50Hz)
Line regulation: CV =< 0.01% + 1mV CC =< 0.2% + 1mA
Load regulation: CV =< 0.01% + 3mV (I =< 3A) CC =< 0.2% + 3mA (I =< 3A)
Ripple and noise: CV =< 0.5mVr.m.s (I =< 3A) CC =< 3mAr.m.s (I =< 3A)
Protection: constant current or short-circuit protection
Voltage indication accuracy: LED/LCD ±1% + 2 digits
Current indication accuracy: LED/LCD ±2% + 2 digits
