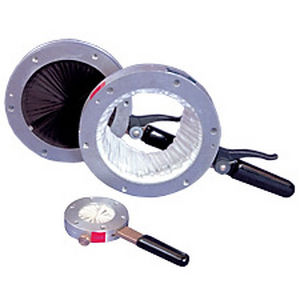

Iris® valve BD series

manualregulatingfor chemicals

The Series BD Iris Valve is a light duty valve specifically designed for infrequent operation, which can be used for both in-line and open discharge operations. They are suitable for handling materials with bulk densities up to 560 Kg / m³. In addition, the BD offers a simplified construction when compared to other in-line valves in the Mucon range. This simplified construction consequently offers the customer reduced cost, size and weight. Construction For valve sizes between 50mm and 200mm, the Iris Valve body parts are manufactured from aluminium with a Gunmetal Control Ring For valve sizes 250mm to 300mm, the valve is manufactured from aluminium and incorporates a zinc aluminium Control Ring 50mm and 80mm valves are fitted with thumbscrew locking, all other sizes have nylon triggers and 316 stainless steel fasteners For protecting fish in transit and during discharge with use of Polyurethane Coated Nylon Liner As a double flanged outlet valve for Intermediate Bulk Containers (IBC) Outlet valve for Dust Collection hoppers For controlling (not shut off) airflow in ventilation ducting
