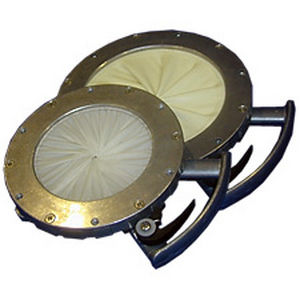

Iris® valve H series

manualregulatingfor chemicals

The Series H Iris valves were designed specifically for open discharge applications on outlets of small and intermediate bulk containers (Rigid IBCs). The Series H is suitable for handling materials with bulk densities up to 900 Kg / m³. This low cost, compact valve has been fitted to many thousands of IBC’s the world over. Its popularity with operators is owed to its ease of operation, reliability and excellent regulation of discharge rates. Construction 100mm, 250mm and 300mm diameter Iris valves are produced from gravity die cast aluminium with an anodised finish 150mm and 200mm diameter Iris valves are produced form high pressure die cast aluminium with an anodised finish An outlet valve for the regulation of material flow from the bottom of Intermediate Bulk Containers Outlet valve on Dust Collection Hoppers Glanding around plastic pipes on extrusion cooling baths Choking the ’necks’ of Big Bags, where a smaller valve is required The H Valve can be certified for ATEX Zone 22D provided that an Anti-Static diaphragm material is used
