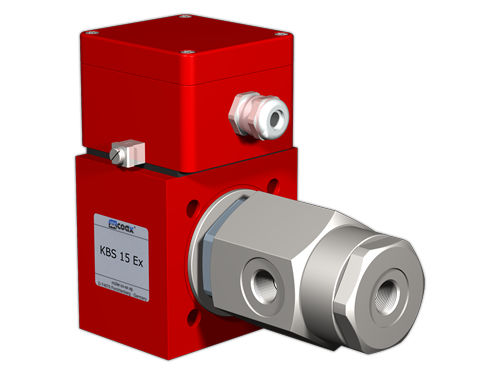

2-way solenoid valve KBS 15 ExNCfor gasswitching
Add to favorites
Compare this product
Characteristics
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for gas
- Other characteristics
- switching
- Voltage
24 V, 230 V
- Temperature
Min.: -20 °C
(-4 °F)Max.: 40 °C
(104 °F)180 °C
(356 °F)- Pressure
Min.: 40 bar
(580.2 psi)Max.: 150 bar
(2,175.6 psi)
Description
characteristics
ports KBS threads G 3/8
function NC
pressure range
bar 40 100 150
DN 3 2 1,5
Kv value
l/min 5,2 1,3 1,1
DN 3 2 1,5
media gaseous - liquid
flow direction A ⇒ B as marked
switching cycles 120 1/min
switching time ms opening 250 closing 160
media temperature °C DC: -20 to +40, AC: -20 to +40
ambient temperature °C DC: -20 to +40, AC: -20 to +40
weight kg 4,2
nominal voltage Un 24 V DC, Un 230 V 40-60 Hz AC
actuation DC direct-current magnet, AC direct-current magnet with, separate rectifier outside , of the explosion-proof area
insulation rating H 180°C
