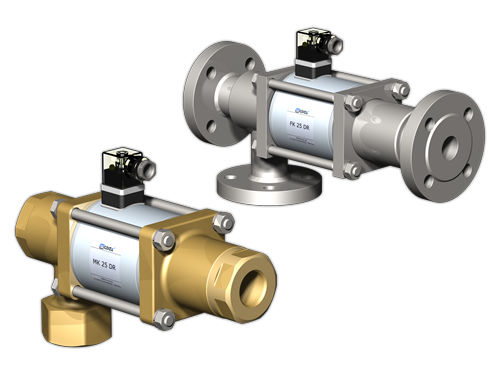

Direct-operated solenoid valve MK 25 DR, FK 25 DR
3-wayNCfor gas

direct-operated solenoid valve
direct-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
direct-operated
Ports/positions
3-way
Function
NC
Medium
for gas
Temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Pressure

40 bar
(580.2 psi)

Description

characteristics ports MK threads G 1 - G 1 1/2, FK flanges PN 16/40 function NC pressure range 0-16/0-40, A ⇒ B max.40 / B ⇒ A max.16 / A ⇒ C max.40 / C ⇒ A max.40 bar Kv value m³/h 11,2 media gaseous - liquid - highly viscous -, gelatinous - contaminated flow direction see pressure range switching cycles 130 1/min switching time ms opening 130 closing 130 media temperature °C DC: -20 to +80, AC: -20 to +80 ambient temperature °C DC: -20 to +80, AC: -20 to +80
