characteristics

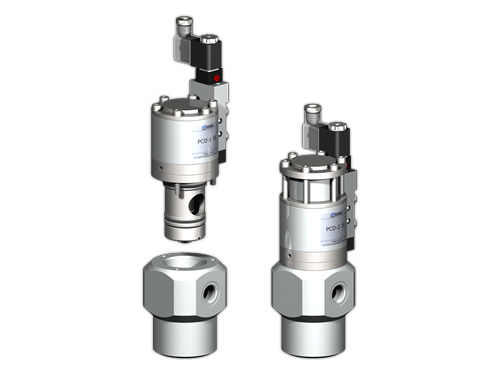

ports PCD-1 without valve body, PCD-2 without valve body
function NC
pressure range PCD-1 0-50 bar (0-200 see pressure diagram)
PCD-2 0-100 bar (0-200 see pressure diagram)
Kv value m³/h 6,0
media gaseous - liquid - highly viscous -, gelatinous - pasty
flow direction A ⇒ B as marked
switching cycles 300 1/min
switching time ms opening 100-3000 closing 100-3000
media temperature °C direct mounted pilot valve 60
ambient temperature °C direct mounted pilot valve 50
approvals
