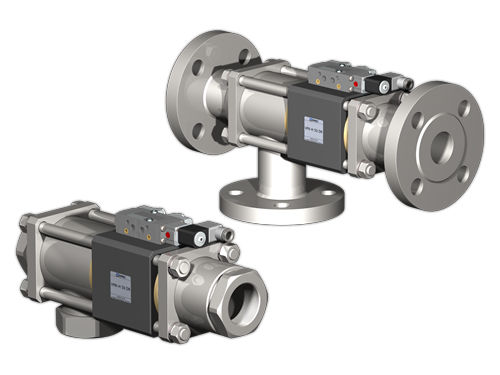

Switching valve VMK-H 50 DR, VFK-H 50 DR
coaxial

switching valve
switching valve
Add to favorites
Compare this product


Characteristics

Associated function
switching
Other characteristics
coaxial
DN

50 mm
(1.969 in)

Pressure

Max.: 200 bar
(2,900.8 psi)

Min.: 0 bar
(0 psi)

Temperature

60 °C
(140 °F)

Flow rate

43 m³/h
(1,518.53 ft³/h)

Description

characteristics ports VMK-H threads G 2, VFK-H flanges PN 160/250 function NC pressure range 0-200, A ⇒ B max.200 / B ⇒ A max.16 / A ⇒ C max.200 / C ⇒ A max.200 bar Kv value m³/h 43,0 media gaseous - liquid - highly viscous -, gelatinous - pasty - contaminated flow direction see pressure range switching cycles 100 1/min switching time ms opening 100-3000 closing 100-3000
