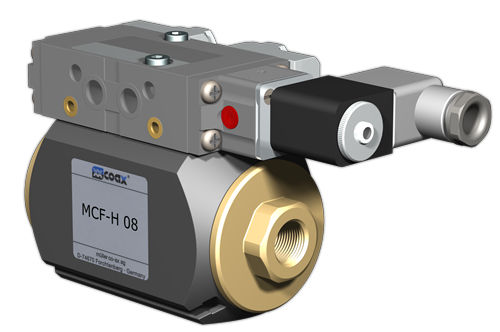

Inert gase valve MCF-H 08
switchingcoaxial

inert gase valve
inert gase valve
Add to favorites
Compare this product


Characteristics

Media
for inert gases
Associated function
switching
Other characteristics
coaxial
DN

8 mm
(0.315 in)

Pressure

Min.: 0 bar
(0 psi)

Max.: 160 bar
(2,320.6 psi)

Temperature

60 °C
(140 °F)

Flow rate

1 m³/h
(35.31 ft³/h)

Description

characteristics ports MCF-H threads G 3/8 function NC pressure range 0-160 bar Kv value m³/h 1,2 media emulsions - oils - neutral gases flow direction A ⇒ B as marked switching cycles 600 1/min switching time ms opening 30-3000 closing 30-3000
