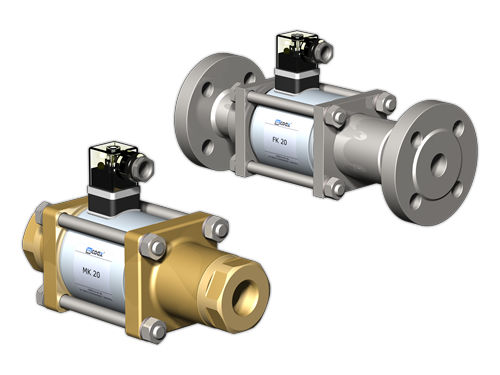

Switching valve MK 20, FK 20coaxial
Add to favorites
Compare this product
Characteristics
- Associated function
- switching
- Other characteristics
- coaxial
- DN
20 mm
(0.787 in)- Pressure
Max.: 100 bar
(1,450.4 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)- Flow rate
7 m³/h
(247.2 ft³/h)
Description
characteristics
ports MK threads G 3/4 - G 1 1/4, FK flanges PN 16/40/100
function NC
pressure range 0-16/0-40/0-64/0-100, bar
Kv value m³/h 7,4
media gaseous - liquid - highly viscous -, gelatinous - contaminated
flow direction A ⇒ B as marked
switching cycles 150 1/min
switching time ms opening 110 closing 110
media temperature °C DC: -20 to +100, AC: -20 to +100
ambient temperature °C DC: -20 to +80, AC: -20 to +80
weight kg MK 5,5 FK 7,5
nominal voltage Un 24 V DC, Un 230 V 40-60 Hz AC
actuation DC direct-current magnet, AC direct-current magnet, with integrated rectifier
insulation rating H 180°C
