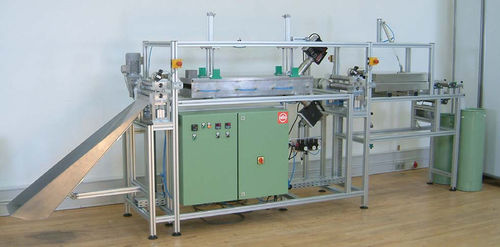

Electric shrink tunnel KA series

hot airsteam

Steaming of elastic tapes. “In line” arrangement upstream of the bandage winding machine VWA203, multiple bandages side by side possible. Humidifying with micro-spraying device and steam. Hot air channels with blowers mounted at the upper and lower surfaces. The KA200 / KA300 is designed for the energy saving steaming of elasticised and non-elastic goods in general and bandages in particular. The article is moistened with an electronical high-pressure steam generator. Shrinkage follows in a downstream tunnel with hot air feeding from above and below. The main advantage of this process is low energy consumption. As a result of the modular design, the system is available with one or two lines. Up to four adjacent products can be fed simultaneously through each of the units. This system is specially designed for inclusion in a production line, upstream of the VWA203 / 303 bandage winder.
