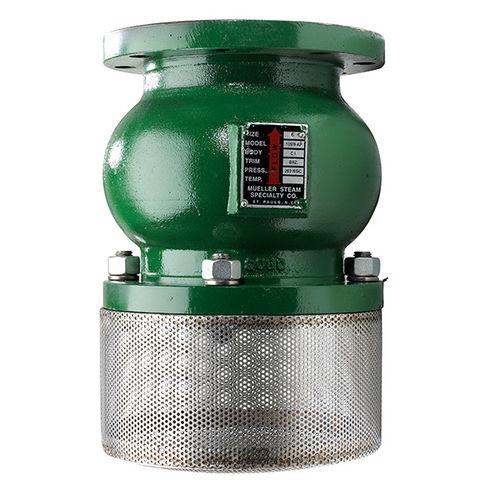

Poppet check valve 105MAP-FVcast ironwith strainer
Add to favorites
Compare this product
Characteristics
- Type
- poppet
- Material
- cast iron
- Other characteristics
- with strainer
- DN
Max.: 600 mm
(23.622 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 13.8 bar
(200.2 psi)Min.: 10.3 bar
(149.4 psi)- Temperature
150 °F
(66 °C)
Description
Class 125 Cast Iron Globe Check Style Foot Valve Assembly
Size:
2 to 24 in. (50 to 600mm)
Description:
Designed for use at the intake side of a suction pipe and pump. The check valve opens when the pump is started, allowing liquid to enter the suction pipe and prime the pump. It closes as the pump stops and before a reverse flow condition develops. The prime to the pump is therefore maintained, eliminating the need to prime the pump each time it is started. Built-in strainer removes unwanted debris for the intake, protecting the pump from damage.
