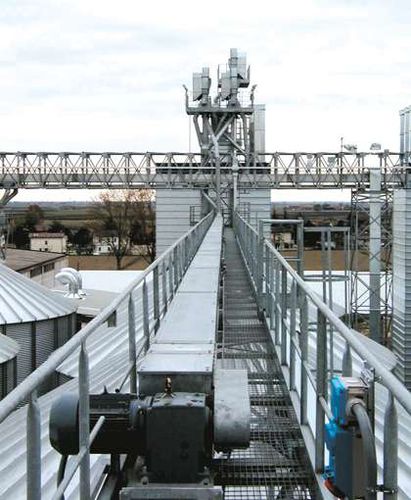

Chain conveyor TC

horizontalinclined

CHAIN CONVEYORS The TC chain conveyors are used to for the transportation of cereals, meals and pellets along horizontal or slightly inclined routes. They are built in conformity with the machinery directive 2006/42/EC and on specific request they can be manufactured for use in potentially explosive atmospheres according to the directive 2014/34/CE. Transportation is performed inside a metallic case with a loop-welded scraping chain. The chain section positioned on the bottom of the case causes the mass of material to move sideways. In the return section, always inside the same case, the chain is supported by upper guides. CHAIN CONVEYORS The chain conveyor, consisting of hot-galvanised steel-plate modular elements bolted together, includes: • control head with galvanised sections, with driving gear wheel keyed to a steel shaft fitted on bearings with flanged cast-iron supports • morotization with gearbox with wither parallel or orthogonal axes directly keyed to the motor shaft • foot with galvanised sections; flat return sprocket keyed to steel shaft, fitted on bearings with cast-iron flange supports. • stretching of conveyor chain by means of screw tensioner installed on the foot of the elevator • chain drive with steel folded meshes and ultimate strength adequate to the capacity and length of the conveyor; PEHD scrapers for cleaning the bottom of the case • continuous bottom polyzene chain guide with high molecular density • galvanised intermediate cases consisting of elements bolted together with upper chain guide and waterproof covering for outdoor installation.
