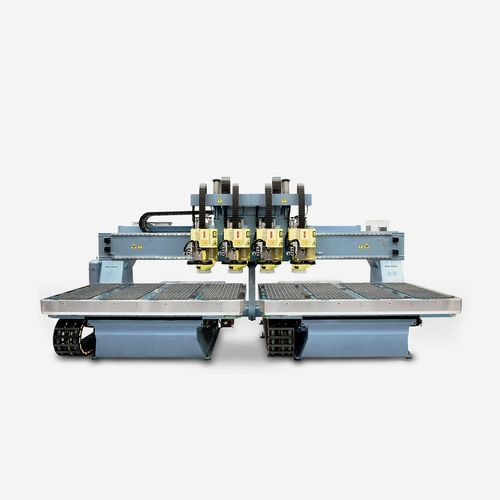

3-axis CNC machining center B series
4-axisverticalwith fixed portal

3-axis CNC machining center - B series - Multiax International CNC srl - 4-axis / vertical / with fixed portal
3-axis CNC machining center - B series - Multiax International CNC srl - 4-axis / vertical / with fixed portal
3-axis CNC machining center - B series - Multiax International CNC srl - 4-axis / vertical / with fixed portal - image - 2
Add to favorites
Compare this product

Go to the Multiax International CNC srl website for more information

Characteristics

Number of axes
3-axis, 4-axis
Spindle orientation
vertical
Structure
with fixed portal, with moving table
Machined material
for aluminum, for non-ferrous metals, for composites, for wood, for plastics
Number of spindles
2-spindle, 3-spindle, four-spindle
Spindle mount
HSK A-63, HSK F63
Number of tool stations
24 tools, 12 tools, 48 tools
Applications
for the automobile industry, for aeronautics, for panels, for profiles, for aluminum profiles, for the plastics industry, for the aluminum industry, for furniture, for the wood industry, door
Other characteristics
high-performance, high-productivity, high-precision, rigid, CE, with integrated pallet changer, automated loading/unloading, for production, multi-spindle, two-station
X travel

3,000 mm, 4,000 mm
(118.11 in, 157.48 in)

Y travel

2,600 mm, 3,600 mm
(102.36 in, 141.73 in)

Z travel

400 mm
(15.75 in)

Rotational speed

Min.: 18,000 rpm
(113,097 rad.min-1)

Max.: 24,000 rpm
(150,796 rad.min-1)

Power

Min.: 12 kW
(16.32 hp)

Max.: 15 kW
(20.39 hp)

Work feed X-axis

80,000 mm/min
(52 in/s)

Work feed Y-axis

80,000 mm/min
(52 in/s)

Work feed Z-axis

20,000 mm/min
(13 in/s)

Tool-changing time

Min.: 8 s

Max.: 16 s

Description

The B SERIES is the most robust, precise, and productive machine in the complete Muitiax line of CNC Routers. Designed and built to run 24/7 for the most demanding CNC users in the wood, N/F metals, plastics, and composites industries. The B Series features a heavy-duty construction, oversized, to deliver long-life reliability and consistent high precision. B SERIES specifically feature extra rigid weldments, with opposing slide ways and extra reinforced cross beams, for total precision across the range. MULTIAX B SERIES "doors" The "doors" versions are an innovative, dedicated answer to cabinet door manufacturers who process smaller and smaller batches at mass production rates continuously. The doors basic versions feature liquid cooled spindles with Digital Floating System (Eu Patent PCT/EU n.1368155) and the unique Parallel Quadrilateral Table (EU Patent PCT/EU n.1082196), to maximize production capacity.
