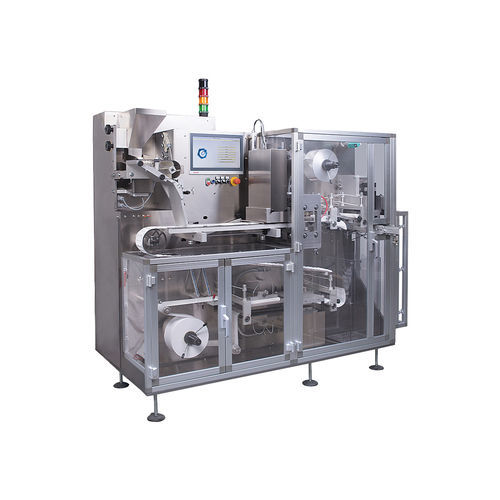

Automatic packaging machine ABM

blisterfor laboratoriesfor the pharmaceutical industry

Compact Automatic Blistering and Thermoforming Machine for thermoforming, filling and sealing of the blister. The machine realizes blisters with a maximum area of 125×180 mm and with a depth of alveolus of 12 mm, starting from coils of PVC, PVDC and aluminum and of thermo-weldable aluminum coils. The blister realized ends in a recovery cassette or to a small exit belt, the scrap of the material is rewound on a recovery coil. The format change, quickly and easily, makes the machine extremely flexible, especially pay attention to the needs of laboratories that need to make small batches, with format changes for different products, from capsules to tablets, from oblong to effervescent through softgel, pearls and candy. The machine is equipped with a control panel that manages all the functions of the machine. The machine is fitted with all covers and protective casing according to the regulations. On request it is possible to equipe the machine of vision systems for monitoring the presence and integrity of the solid bodies. The machine included the following groups: Group pvc coil, PVDC or aluminum with rapid system for coil replacement. Zone preforming plate. the plate forming station. film driving unit. loading solids guides. Group aluminum coil thermo-weldable with rapid system for coil replacement. Group welding of blister plates. shearing blister Group / scrap with tailrace tunnel. Cassette / blister output recovery Ribbon. Group scrap recovery coil. mechanical machine accessible via the rear doors. electrical panel on board fully integrated machine. Control console. Informations complémentaires POIDS KG - 600 DIMENSIONS LXLXH - 1400x1100x1450 mm
