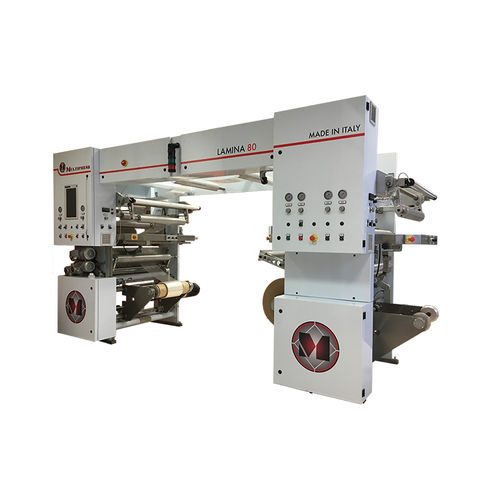

Automatic laminator LAMINA series

roll-to-roll

Designed for the production of laminated flexible packaging using solventsless adhesives. Offers an optimum functionality, ease of use with simplified maintenance. Main panel: LCD colour touch screen Web tension indicator Meter counter Speed indicator TELESERVICE - Internet connection - Servo controlled: Fully servo motorized on unwinders and rewinder, incuding the coating and laminating rollers. - Quick set-up: The shaftless system with automatic loading and unloading coils control, automatically centers those simplifying the set-up process. - Laminating unit: Laminating width changes using interchangeable sleeves. Chrome plated and temperature controlled laminating rollers. Rubber coated and pneumatically operated pressure roller. Heating device is included. - Digital mixer: Mixing system with two geared pumps for filling the adhesive and catalyst tanks. Dispersion rate is controlled by inversors and software. Size Lamina 80 L. 4600 x W. 2200 x H. 2700 mm - Service area 1,5 - 2,0 m for side - Power supply 400 V, 50 Hz, 3 Ø - Compressed air 7/8 Bar, seco, filtrado - Weight 3,8 Ton - TELESERVICE remote assistance in real time via Internet
