Trailer-mounted concrete pump
for constructionpiston

Trailer-mounted concrete pump - Multiquip, Inc. - for construction / piston
Trailer-mounted concrete pump - Multiquip, Inc. - for construction / piston
Add to favorites
Compare this product


Characteristics

Configuration
trailer-mounted
Applications
for construction
Other characteristics
piston

Description

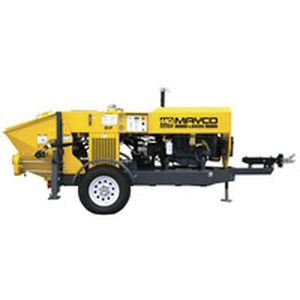

The "Workhorse" for most hard-rock applications Filling a niche that has been neglected, the Mayco LS500 Concrete Pump has the versatility to efficiently place 2" line mixes (3/8" pea gravel, masonry grout, shotcrete), structural concrete containing up to 1.5" aggregate, as well as everything in-between. Equipped with 6" diameter concrete cylinders and utilizing a 36" stroke ensures that the LS500 will smoothly pump even low slump concrete mix designs. Mayco's balanced independent hydraulic circuit guarantees a smooth changeover throughout, reducing to a minimum the tiring pump surge and premature wear on placing components. The 'true reverse' feature allows for immediate reversal of the pump stroke at any point allowing you to avoid troublesome line blockages in both a timely and safe manner. The powerful Deutz 77hp diesel engine helps put meaningful working force behind the LS500's 1100psi concrete delivery pressure so that you get true performance at distances rarely achieved by other concrete pumps in this class. The Mayco LS500 Concrete Pump is the true value choice for contractors who need performance without breaking the bank. Concrete piston face pressure of 1100 PSI (76 Bar) Concrete cylinder diameter is 6 inches (152 mm) with 36-inch stroke (914 mm) Horizonal pumping distance of 1000 feet (300 meters), vertical is 300 feet (91 meters) Powered by a 77-hp (57.4 kW) Deutz BF4L2011 turbo diesel Designed for aggregate sized up to 1-1/2 inches (38 mm) Hopper remixer/agitator standard True Reverse allows stroke change during any point in the pumping cycle Hard faced wear components for longer life

Catalogs

No catalogs are available for this product.
