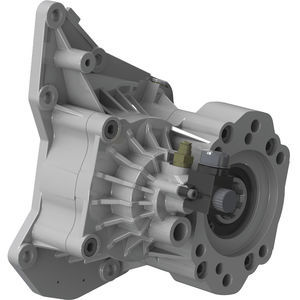

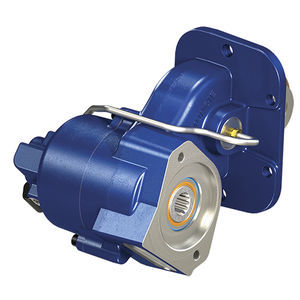

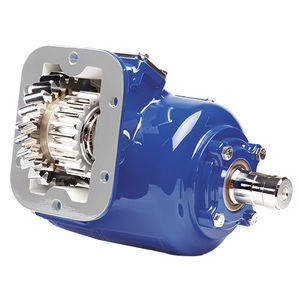

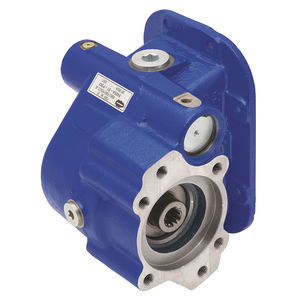

Power take-off with hydraulic clutch CS10/CS11 series

engine

The CS10 Series Power Take-Off is a heavy duty, Clutch Shift PTO designed specifically for Allison World® and Caterpillar transmissions. The CS10 Series PTO is engaged by means of a solenoid activated, wet clutch pack. The engagement solenoid is built into the PTO and installation is simplified by the requirement of only one hose connection. A remotely mounted solenoid option is available for a more compact installation. KEY FEATURES Three remote mount output shafts in both keyed and flange types: Versatility for remote pump drives S.A.E. "B", "BB", and "C"; DIN 5462 direct mount pump options: Fits most popular pumps Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance Patented Muncie drag brake: Prevents shaft rotation in "OFF" mode Standard pressure lubrication: No extra cost Two assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
