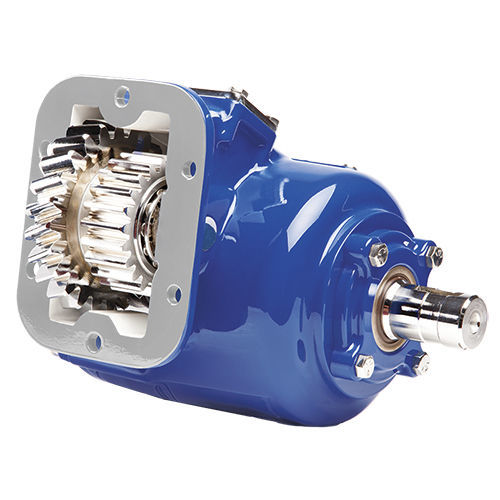

The CS6 and CS8 series are Clutch Shift PTO's designed to work well on Allison 1000 & 2000 series automatics and many current manual transmissions. Like all of Muncie's "Clutch Shift" line of PTOs, the CS6/8 offers popular direct mount pump options as well as Muncie's patented shaft brake, a standard feature. An upgraded multi-disk clutch brake can be used where absolute shaft stoppage is required.
19 transmission input gears: Fits most popular automatic and manual transmissions
Three remote mount output shafts in keyed and flange types: Versatility for remote pump drives
S.A.E. "A", "B", and "BB"; DIN 5462 direct mount pump options: Fits most popular pumps
Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
Patented Muncie drag brake: Prevents shaft rotation in "OFF" mode
Optional pulse generator: Lets System Protection Device monitor PTO shaft speed
The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.
