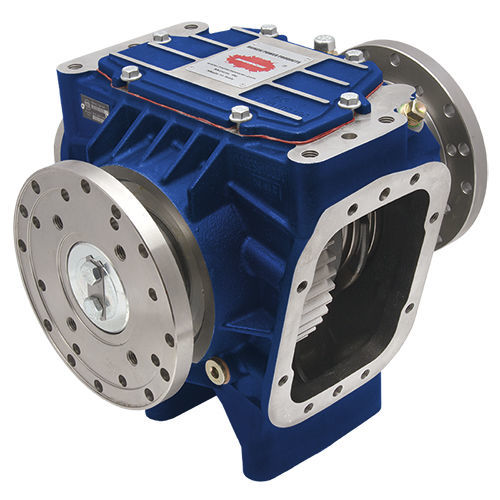

Power take-off with hydraulic clutch SS88

enginefor heavy-duty applications

Muncie Power's auxiliary power drive SS88 Series split shaft PTO allows for mounting of two 8-bolt type PTOs behind the transmission on medium-duty and heavy-duty vehicles. Our SS88 has two through shaft torque options available: the 14,000 lb.ft. rating and the 21,000 lb.ft. rating. The PTO drive gear in the SS88 is a high quality, 6-pitch spur gear that can handle the torque ratings of the large 8-bolt PTOs like the Muncie Power 82 Series. The through shaft is air or hydraulic shift-able to disengage the rear axle to allow for stationary operation; PTOs can be mechanically shifted, air-mechanically shifted and or air-clutch shifted (depending on the series specified). High Through Torque Capacity (14,000 lbs.ft. or 21,000 lbs.ft.) Two SAE 8-Bolt aperatures Air or hydraulic shift High quality, 6-pitch spur gear Compact design Durable components common to other Muncie Power split shaft products
