Mobile scaffolding tower 115114
aluminium

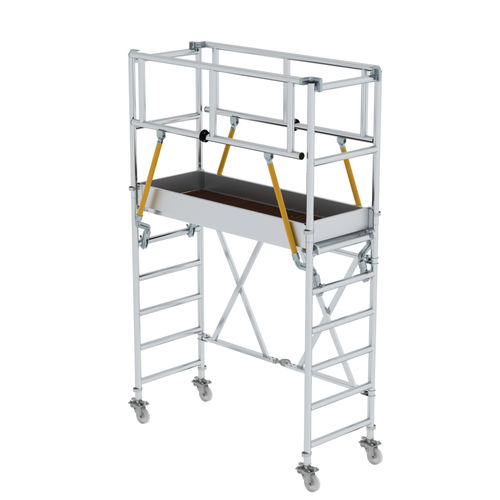

Mobile scaffolding tower - 115114  - Munk Günzburger Steigtechnik - aluminium
Mobile scaffolding tower - 115114  - Munk Günzburger Steigtechnik - aluminium
Mobile scaffolding tower - 115114  - Munk Günzburger Steigtechnik - aluminium - image - 2
Add to favorites
Compare this product


Characteristics

Type
mobile
Other characteristics
aluminium
Working height

4.08 m, 5.2 m
(13'04" , 17'00" )

Description

Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts Secured all around thanks to leading railing, can be assembled and dismantled from level to level All scaffolding parts are also available individually as spare or extension parts Folding frame made of rectangular tube side-rails with self-locking hinges Space-saving transport and storage Four Ø 125 mm swivel castors with centric load application and spindles Slip-resistant platform for secure standing Aluminium toe boards and railing frames with integrated knee board as safety railing (from platform height of 2.8 m and higher) Simple setup and removal without tools Different platform widths available (0.75 / 1.35 m) Platform lengths of 2.45 m and 3.0 m upon request Working heights up to 13.88 m GS-tested as per DIN EN 1004 Load class/scaffolding group 2: 1.5 kN/m² Corporate certification: ISO 9001 Corporate certification: EN 1090 Corporate certification: EcoVadis RoHS REACH The MUNK Group complies with a Code of Conduct The Supply Chain Act does not apply due to our size The materials used are listed in the technical specification Resource-saving production: own photovoltaic systems Energy-efficient consumption during production: LED lighting Repairability, durability and quality: 15-year warranty on series products made in Germany
