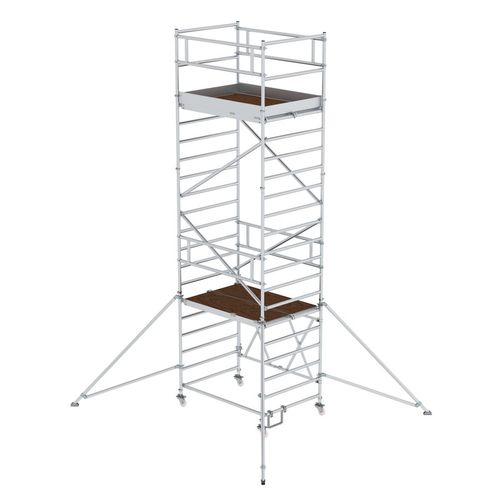

Mobile scaffolding tower 1152 series

facademodularwith stairway

Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts Folding frame made of rectangular tube side-rails with self-locking hinges Space-saving transport and storage Four Ø 125 mm swivel castors with centric load application and spindles Slip-resistant platform for secure standing Aluminium toe boards and railing frames with integrated knee board as safety railing (from platform height of 2.8 m and higher) Simple setup and removal without tools Different platform widths available (0.75 / 1.35 m) Platform lengths of 2.45 m and 3.0 m upon request Working heights up to 13.8 m GS-tested as per DIN EN 1004 Load class/scaffolding group 2: 1.5 kN/m² In order to meet the requirements of DIN EN 1004-1:2021, this scaffold must be retrofitted Option 1 - Conversion to MSG: 2 protective assembly railings telescopic (027991) are required for safe assembly, dismantling and conversion Option 2 - Conversion to SG: Replace the railings lengthwise with safety railings for mobile scaffoldings in the appropriate scaffold length (2 pieces per platform level). Replace the guardrail frame at the front (top platform level) with railing frame SG at the front in the appropriate width. Omit the diagonal braces above the first platform
