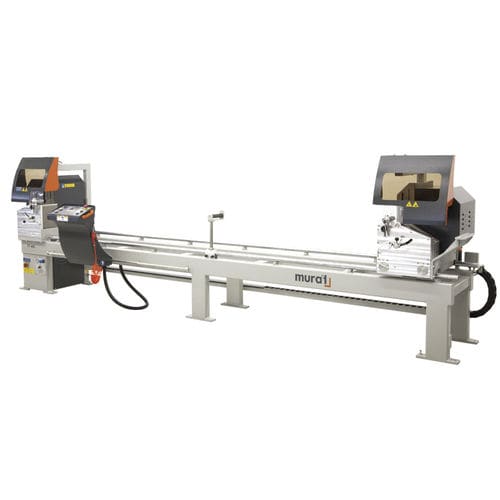

Metal double-head miter saw TT 405

for plasticsfor wood

For PVC and Aluminum profiles cutting. Solid cast construction for length and angle accuracy. Ultimate cutting quality. Automatic tilt movement of the saw heads to 45° and 90°. Angles between 45° and 90° can be adjusted manually and fixed easily. The 450 mm. saw blade diameter enables to cut wide profiles as well as two 80 mm. profiles at the same time. The saw blade feed speed can be adjusted. Ability to cut 4,200 mm. length. By means of the PLC control system with Windows CE the movable head positions itself automatically. Piece numbers, length dimensions, angular positions and quantities can be programmed on the control panel (999 x 3 different data can be stored). Data transfer is available via network connection or USB interface. The control system can skip and then continue the cutting order. Profile support conveyor fixed to the movable head helps to keep the balance of the work piece. Automatic closing safety hood. Horizontal and vertical clamping system ensure optimum profile fixing. OPTIONAL: Barcode printer. Cooling system to cut aluminum profiles. Hydro-pneumatic system for aluminum profiles. Aluminum wedge cutting system. (max. 7,200 mm. length can be fixed to the machine)
