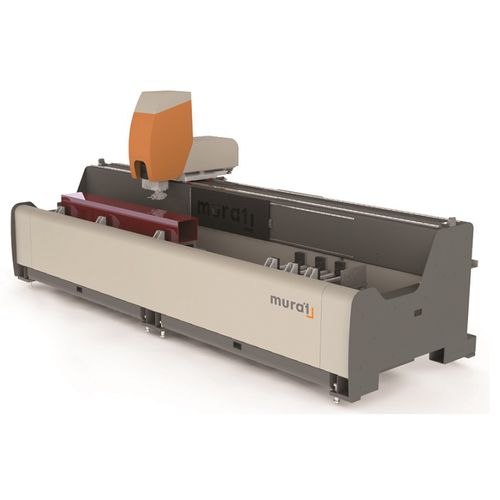

3-axis CNC machining center MAC 340

universal

PC controlled 3-axis interpolated CNC Machine Able to move in 3 axis simultaneously on the work piece High accuracy on Aluminium door, window and facade profiles (+/- 0,1mm) Able to work on 3 mm thick iron profiles Able to work on 5 sides of profile (front, back, left, right and top) Automatic tool changing by means of magazine which holds 7 tools including Angled Head Automatic moving vices (Vices moves according to position of processing point during operation) 19” touch screen monitor Industrial PC with Windows XP embedded which works between 0°C - 55°C without fan RJ45, 1 GBit Ethernet connection Problem identification, solution and servicing by means of remote connections CAD – CAM programme Automatic switching from DXF format to 3D 3D machine simulation which enables to calculate the operation time before operating the machine and displaying the process in 3D Full integration with facade and door – window production software Thread cutting, flow drill, counter sink operations Central lubrication system to ease the machine maintenance
