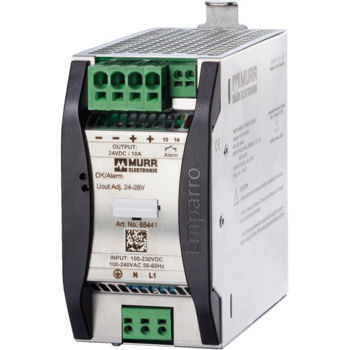

AC/DC power supply Emparro®

switchingwith overload protectioncabinet

Switch Mode Power Supply Units For Even Power Distribution Murrelektronik's Emparro switch mode power supply units' efficiency rate of up to 95% is impressive! This reduces power loss to a minimum and the low energy consumption helps save a lot of money. Efficiency up to 95% ■ 150% Power Boost for at least 4 seconds ■ Metal housing with protective EMC characteristics ■ Derating only at 60°C ■ Slim design ■ High mains failure bridging time ■ Seven different models provide solutions for many applications Protection from Overload Damage In the event of overload, the output voltage is controlled with a constant current. It is limited to 100% of the nominal current (or to 150% in Power boost mode). This protects the power supply from damage. 95% Efficiency Rating A higher efficiency rating equals minimum power loss, which equals reduced operating costs. Emparro's lower operating temperature ensures that the device, and the components installed around it, will not be as affected by heat build up in the cabinet. Therefore, control cabinets with smaller dimensions can be used. A Global Player The wide input voltage range makes Emparro suitable for worldwide use. High MTBF Value Emparro67 has a high M value. MTBF describes the Mean Time Between Failures. Startup with a single power supply The device supplies up to 50% more power to start up higher loads and capacities without using a second power supply.
