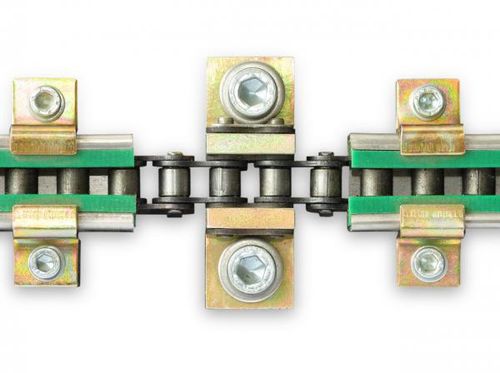

Chain transmission 08B-1 serie

chain transmission
chain transmission
chain transmission
Add to favorites
Compare this product


Description

Our chain racks have more than proven themselves as an economical alternative to milled racks. The system is characterized by ease of installation and simple adjustment, and is attached using an anchor plate at one end and a clamping set at the other end.designThe clamping set is connected with the actual chain rack using a simplex chain connecting link. The chain is guided using a cage profile made of Material ”S”®1000 green. This is clasped by a steel C profile from the outside. The steel C profiles are fixed to the base using clamps. For chain lengths of more than 2,500mm, fastening brackets are also provided. They are integrated into the rack using duplex connection elements. This prevents the chain rack from moving in the cage profile during start-up and deceleration. Chain racks are available in chain sizes of -“, F/ i“, :“ and 1“.
