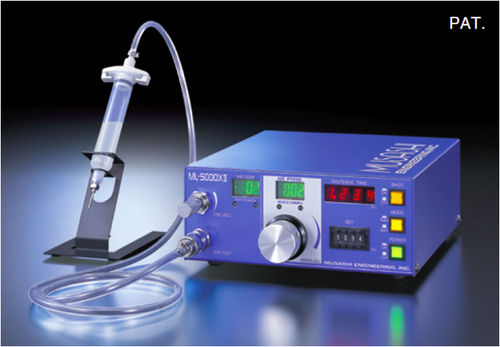

Liquids dosing dispenser ML-5000XII

syringehigh-precisiondigital

Standard func of digital dispenser. We realize superior dispense reproducibility ・It carries high function including Air pulse stabilizing circuit (PAT.) and realizes superior Discharge accuracy. ・We realize compactification of 65% of installation area. ・It can be selected by setting of nyuryokushingosetsukan DIP switch by input signal of "no voltage" or "overpotential" (5V/12V/24V). Specifications Discharge pressure setting :Electro/pneumatic method Pneumatic control circuit :Air pulse stabilizing circuit (PAT.) Dispense pressure setting :5.0 - 700.0kPa Discharge time setting :0.010 - 9.999sec. (0.001sec. step) Discharge time control circuit :C-MOS IC control digital circuit Vacuum pressure setting :0 - -20.0kPa Display section :LED digital display Input and output signal :Input: With or without contact point Output: Without contact point Supply air pressure :Up to 0.8 MPa (Discharge pressure +0.1 MPa or more) Power supply, Power consumption :AC100 - 240V 50/60 Hz, 17W Exterior dimensions, weight :W188 X D196 X H76mm, 3.4 kg
