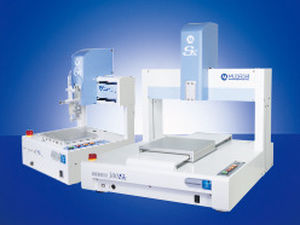

4-axis robot SHOTMASTER®/SHOTmini® SX series
3-axisdispensing

4-axis robot - SHOTMASTER®/SHOTmini® SX series - Musashi Engineering Europe GmbH - 3-axis / dispensing

Add to favorites

Compare this product

Characteristics

Number of axes

4-axis, 3-axis

Function

dispensing

Payload

Max.: 15 kg
(33.069 lb)

Min.: 2 kg
(4.409 lb)

Reach

Max.: 500 mm
(19.69 in)

Min.: 50 mm
(1.97 in)

Repeatability

0.01 mm
(0.0004 in)

Description

Motion unit of concentration MUSASHI of dispensing "core" technology Ultimate high cost performance High speed ・800mm/s Highway movement of class top-level High precise ・Refrain locational accuracy of ±0.01mm Synchronized speed ® function Equipped ・Even corner part keeps drawing width constantly. We shorten cycle time to the maximum and realize ultimate production efficiency. Full function, optional group ◆ New Teaching Pendant Navigation function Equipped of ・ dialog ・ stopwatch function Change function of ・ dispense condition Data transmission function between ・ robot ・ Japanese, English, Chinese correspondence ◆ Extensive hardware structure 26/26 point of ・ outside input and output ・ USB communication ・ Z-axis brakes function ◆ Nozzle adjuster (optional) We automate nozzle position adjustment after ・ syringe change
