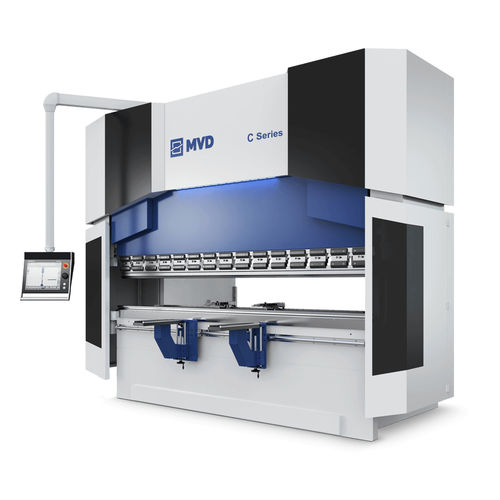

Hydraulic press brake C series

CNC4-axisprecision

Designing and Manufacturing are based on reliability, durability and precision. Machines are easy to use and are built to be ready to serve for many years. Quality and service support is accepted as principle. Standard Features • Y1, Y2, X, R CNC 4 Axes • 310 mm Stroke, 410 mm Throat Depth • ESA S640 CNC Control Unit • ± 0,03 accuracy SERVO motorized back gauge. X=750 mm, R=250 mm • Quick clamp Promecam punch tool holder • Sliding front sheet support arms • Manuel Anti-deflection crowning with original Wila wedges • MVD special narrow bottom table (European type) • GIVI optic linear scales • Standard punch tools (H: 67, 85°, R:08) • Standard die tools (60x60 mm, 4 Vee V=16-22-35-50 mm, 85°, H:60) • LED illumination on RAM Optional Features • X+R to 4-6-8 axis back gauge options • Rolleri Rol200 hydraulic punch clamping • Wila hydraulic punch clamping • Wide bottom table for Multi Vee dies • Motorized Anti-deflection crowning with original Wila wedges • 1.000 mm X axis travel • AKAS or DSP front laser safety systems • Additional back gauge fingers • Front laser safety BACK GAUGE OPTIONS • 0,03 mm accuracy • High speed • Strong structure • Linear scales • Ball bearing system without backlash • 3 step fingers with micrometric adjustment • Robust design againts hard impacts
