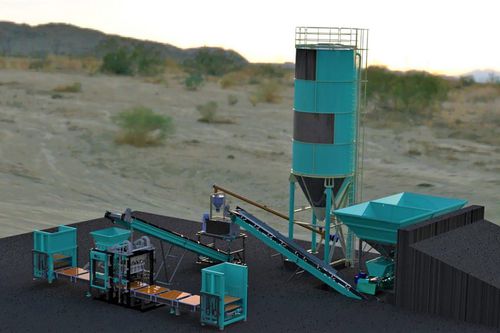

MVS 1204 Block and Paverstone Machine is operated by manually with hydraulic arms. According to customer request it can be manufactured semi automatic with PLC control.
All kinds of blocks, curbstones, paverstones, interlocks can be produced by changing moulds,
20cm block can be produced 4 units and 12 interlock stones can be produced in one press,
Due to using special design vibrators, productions are being smooth and quickly
Moulds are changing easly and take short time period by our new innovation mould changing system .
Easy maintenance and service.
Machine Weight - 4500Kg
Hydraulic Pump Power - Full Automatic - 15kw60lt+19lt/min
Semi Automatic - 11kw40lt+19lt/min
Manual - 7,5kw28lt/min
Hydraulic Oil Capacity - 300lt
Machine Mortar Bunker Capacity - 2x1000dm³
Machine Dimensions - 1500x3000x2400mm
Upper Vibration Power - 1×0.55kW
Lower Vibration Power - 1×5.5kW
Total MachinePower Usage - Full Automatic - 23,05kW
Semi Automatic - 17,05kW
Manual - 13,05kW
Minimum Product Height - 50mm
Maximum Product Height - 300mm
Vibration Press Power - 13kN
Press Capacity - 3200kg-100bar
The Number of Product on a Pallette - 12 pcs interlock, 4 pcs block 200x400x200mm
Wooden Pallet Dimensions - 550x950x35mm
