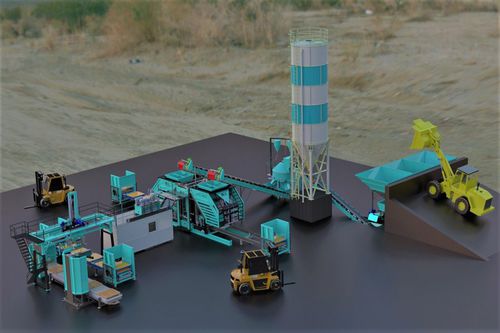

Concrete block making machine MVS-2008

automatic

MVS 2008 Block and Paverstone Machine is a specific design machine for block, interlock production which works fully automatic. The machine is programmed by PLC computer. All kinds of blocks, curbstones, paverstones can be produced by changing moulds. 20cm block can be produced 8, interlock, paverstones can be produced 20 units in one press. Moulds are changing easly and take short time period by our new innovation mould changing system . Vibration on mould is expanded uniformly, because of using pneumatics bellow mould connections, Easy maintenance and service Machine Weight - 11000Kg Hydraulic Pump Power - Full Automatic - 22kw60lt + 4kw19lt + 11kw+59lt/min Semi Automatic - 22kw60lt + 4kw19lt/min Manual - 11kW 59lt/min Hydraulic Oil Capacity - 400lt Machine Mortar Bunker Capacity - 2x1200dm³ Machine Dimensions - 1800x5500x2500mm Upper Vibration Power - 2×0.55kW Lower Vibration Power - 4x4kW Total MachinePower Usage - Full Automatic - 49,1kW Semi Automatic - 38,1kW Manual - 23,1kW Minimum Product Height - 50mm Maximum Product Height - 300mm Vibration Press Power - 35kN Press Capacity - 6000kg-100bar The Number of Product on a Pallette - 20 pcs interlock, 8 pcs block 200x400x200mm Wooden Pallet Dimensions - 900x950x40mm
