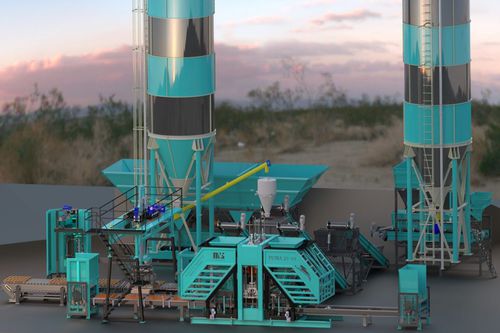

Concrete block making machine MVS-2510

automatic

MVS 2510 Block and Paverstone Machine is a specific design machine for block, interlock production which works fully automatic. The machine is programmed by PLC computer. All kinds of blocks, curbstones, paverstones can be produced by changing moulds. 20cm block can be produced 10, interlock paverstones can be produced 25 units in one press. Moulds are changing easly and take short time period by our new innovation mould changing system . Vibration on mould is expanded uniformly, because of using pneumatics bellow mould connections, Easy maintenance and service Machine Weight - 15500Kg Hydraulic Pump Power - Full Automatic - 22kw60lt + 4kw19lt + 11kw + 59lt/min Semi Automatic - 22kw60lt + 4kw19lt/min Manual - 11kW 59lt/min Hydraulic Oil Capacity - 700lt Machine Mortar Bunker Capacity - 2x1500dm³ Machine Dimensions - 2800x6500x2700mm Upper Vibration Power - 2×0.72kW Lower Vibration Power - 4x4kW Total MachinePower Usage - Full Automatic - 49,1kW Semi Automatic - 38,1kW Manual - 23,1kW Minimum Product Height - 50mm Maximum Product Height - 300mm Vibration Press Power - 42kN Press Capacity - 6000kg-100bar The Number of Product on a Pallette - 25 pcs interlock, 10 pcs block 200x400x200mm Wooden Pallet Dimensions - 1200x980x40mm
