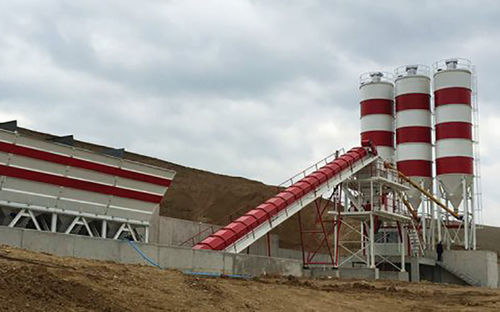

Stationary concrete batching plant MVS-60C

Quick and easy installation (only 1-2 days) Cost effective sea and land transportation (2 units 40’OT container) Quick and easy relocation Flexibility in the configuration Minimum foundation cost, only flat concrete surface is enough for installation Easy maintenance and low operating costs High production performance with optimized automation system Batch Count - 60 - cycle/hr Mixer Capacity(compacted) - 1 - m3 Mixer Capacity - 1,5 - m3 Mixer Motor Power - 37 - kW Aggregate Bin Qty - 3-4 - Ea. Aggregate Bin Capacity - 20 - m3 Aggregate Weighing Conveyor - 650×11.000 - mm Mixer Feeding System - Skip Hoist System - Aggregate Weighing - 2.200 - kg Cement Weighing - 500 - kg Water Weighing - 250 - lt Additives Weighing - 20 - kg Skip Hoist Max.Loading Power - 2.200 - kg Skip Hoist Motor Power - 18.5 - kW Cement Screw Conveyor - 219×7.500 - mm Cement Silos - 2-4 - Ea. Cement Silo Capacity - 50-75-100-150-200-250 - tons
