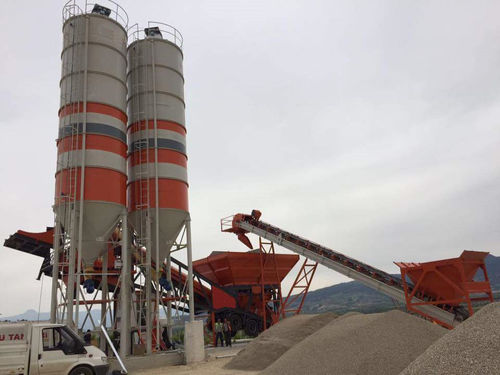

Mobile concrete batching plant MVS-100M

special

MVS-100M is the best choice for mass concrete production on temporary work sites. Quick and easy installation (only 1-2 days) Cost-effective transportation (the main unit can be transported by one truck trailer) Due to the special design, it can be installed on a confined space Quick and easy jobsite relocation Low foundation cost (installation is on a flat concrete surface) Minimizes the concrete transportation cost and environmental impact as well Easy maintenance and low operating cost High production performance with optimized automation system Batch Count - 50 - cycle/hr Mixer Capacity(compacted) - 2 - m3 Mixer Capacity - 3 - m3 Mixer Motor Power - 2×37 - kW Aggregate Comparments Qty - 4 - Ea. Aggregate Comparments Capacity - 20 - m3 Mixer Feeding System - 1.000×13.000 - mm Aggregate Weighing - 4.400 - kg Cement Weighing - 1.000 - kg Water Weighing - 700 - lt Additives Weighing - 20 - kg Cement Screw Conveyor - 273×10.500 - mm Cement Silos - 2-4 - Ea. Cement Silo Capacity - 50-75-100-150-200-250 - tons
