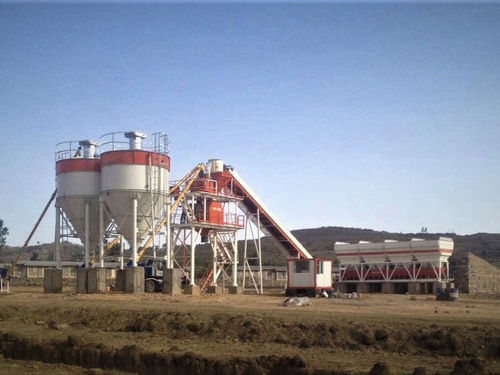

Stationary concrete batching plant MVS-60S

continuous

MVS-60S is designed for maximum flexibility, efficiency and reliability for producing all types of high quality concretes to satisfy moderate concrete requirements. Wide range of compatible concrete mixers make these plant highly configurable for any specific needs. These models are particularly well-demanded in precast and block applications with small and medium molds in production lines. Heavy and stable main chassis allows extreme durability, safe transportation, continuous long-life operation and sensitive weighing by minimizing the vibrations to the scales. Mixer Capacity(compacted) - 1 - m3 Mixer Capacity - 1,5 - m3 Mixer Motor Power - 37 - kW Aggregate Bins Qty - 3-4 - Ea. Aggregate Bins Capacity - 20-30 - m3 Aggregate Weighing Conveyor - 800×11.000 - mm Mixer Feeding System - 800×24.000 - mm Aggregate Weighing - 2.500 - kg Cement Weighing - 500 - kg Water Weighing - 300 - lt Additives Weighing - 20 - kg Cement Screw Conveyor - 219×7.500 - mm Cement Silos - 2-4 - Ea. Cement Silo Capacity - 50-75-100-150-200-250 - tons
