Disc clutch ESB/S multiple-discelectromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- disc, multiple-disc
- Operation
- electromagnetic
- Torque
Max.: 3,200 Nm
(2,360.1989 ft.lb)Min.: 10 Nm
(7.3756 ft.lb)- Rotational speed
Max.: 500 rpm
(3,141.59 rad.min-1)Min.: 25 rpm
(157.08 rad.min-1)- Power
Max.: 230 W
Min.: 16 W
Description

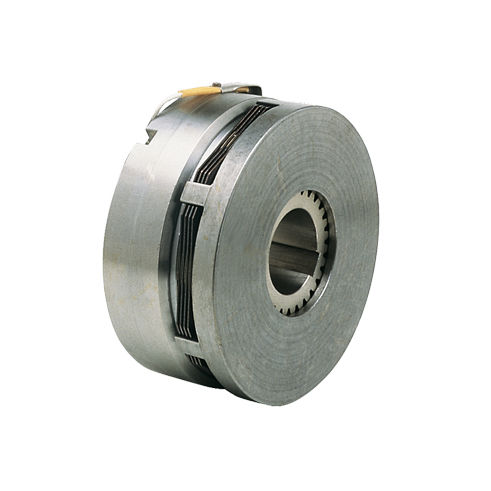

Multidisc electromagnetic clutch with static magnet.
Tension 24 V dc – 0 + 15%
Used for dry applications at low rpm only.
Motion is transmitted between the shaft splined to the hub (2) and the housing (4), which can be fitted with flanges, pulleys, etc.
Catalogs
Electromagnetic clucthes and brakes
162 Pages
