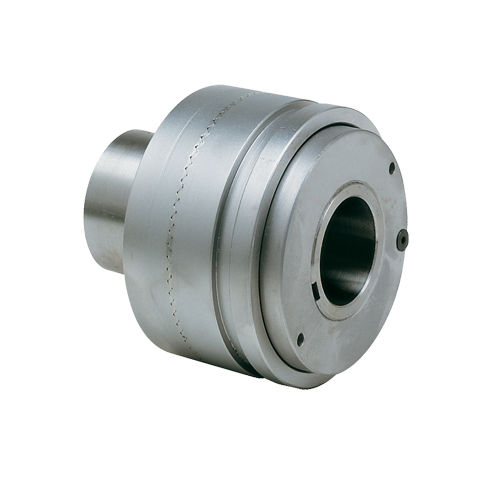

Mechanical torque limiter GDFM with sprocket wheel
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical, with sprocket wheel
- Torque
Min.: 5 Nm
(3.6878 ft.lb)Max.: 2,400 Nm
(1,770.1492 ft.lb)- Diameter
Min.: 10 mm
(0.39 in)Max.: 75 mm
(2.95 in)- Rotational speed
Min.: 300 rpm
(1,884.96 rad.min-1)Max.: 1,400 rpm
(8,796.46 rad.min-1)
Description
Tooth-type torque limiter with axial slippage
For dry and oil bath applications, useful for connecting a shaft splined to the hub (1) and a pulley or crown wheel fastened to the toothed body (2).
The calibration is adjusted by the ring nut (6), which varies the load of the springs (4) controlling the toothed housing (3).
The toothed housing (3) has a groove for fitting the microswitch (9).
