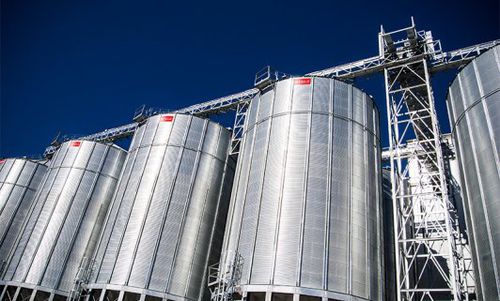

Hopper silo

galvanizedhigh strength steel

Commercial Hopper Bottom Silo Wide range of products Mysilo manufactures different model commercial hopper base silos, diameters of which varies from 4.58 to 11.0 m and capacity up to 1829m³. Four different hopper angles as 37°, 40°, 45° and 60° can be manufactured according to silo diameter, grain to be stored, natural conditions of the place where silo is desired to be erected such as wind, seismic, snow loads. Hopper angle of silos vary depending on sio diameter, intended use and be stored type of product for comfort flowing. Waste of time and Money are prevented by hopper base while unloading. Hopper bottom silos can be separated into two sections. First ones which have low capacity are named Economic Hopper Bottom Silos and others which have high capacities Commercial Hopper Bottom Silos. Due to the high capacity, specially designed strong hopper structure bears the silo loads efficiently. All design details are considered for the safe grain storage. Sidewall stiffeners are manufactured from 600gr/m² galvanized, S350GD+Z (min. 350 N/mm² tensile strain) high strength steel. Transition of the vertical loads (dead load, load during loading or unloading, wind and seismic loads) of silo is very easy with these specially designed stiffeners. Mysilo sidewall sheets have the most narrow corrugation in the world which is 65 mm.
