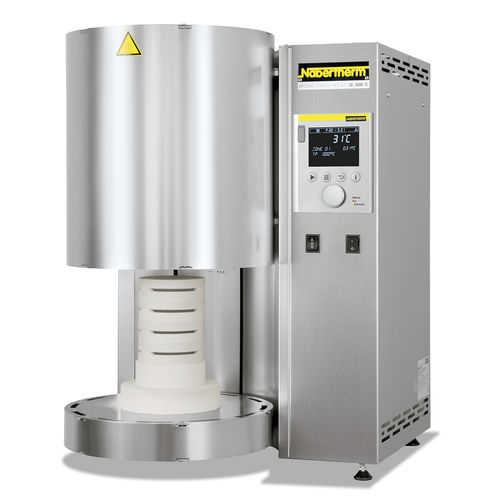

Chamber furnace LHT 02/17 LB Speed

sinteringelectrichigh-temperature

The motorized lifting table significantly simplifies the charging of the high-temperature furnaces LHT ../.. LB (Speed). The heating all around the cylindrical furnace chamber provides for an optimal temperature uniformity. For the tabletop models LHT 01/17 LB Speed and LHT 02/17 LB Speed the charge can be placed in charge saggars made of technical ceramics. Up to three charge saggars can be stacked on top of each other resulting in a high productivity. Standard Equipment • Tmax 1650 °C • High-quality heating elements made of molybdenum disilicide offer very good protection against chemical interaction between charge and heating elements • Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP) • Excellent temperature uniformity thanks to three (LHT 02/17 LB Speed) or four-sided (LHT 01/17 LB Speed) heating of the furnace chamber • Furnace chamber with a volume of 1 or 2 liters, table with large floor space • Precise, motorized toothed belt drive of the table with button operation • Exhaust air vent in the roof • Type S thermocouple • Controller P580 (50 programs with each 40 segments) • Defined application within the constraints of the operating instructions • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
